Q-BD Bus Duct

Variable shapes

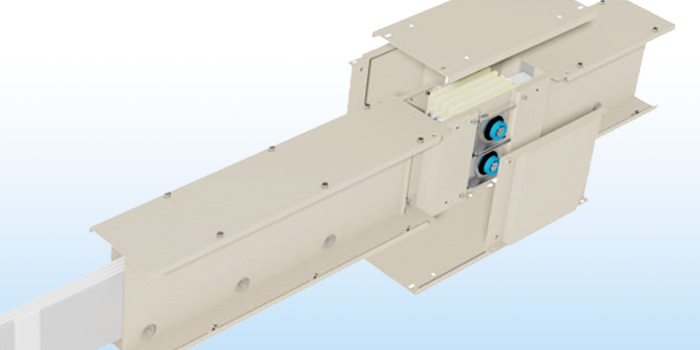

Q-BD Bus Duct

This is an entirely newly-developed 3-phase 4-wire electrical trunking system with a 50% internal earth bar.

Product Overview

An entirely newly-developed 3-phase 4-wire electrical trunking system

Q-BD Insulated Bus DuctThe reliable technology used to make this has been created with the technical know-how of the highly experienced professionals at KYODO KY-TEC.

Applicable StandardsIEC 61439-1, IEC 61439-6
Degree of ProtectionIP65
Wiring System3-Phase 4-Wire + 50% Internal Earth Bar
Rated Voltage1000V(AC) or 1500V(DC)
Rated Current800A to 6300A
Rated Frequency50Hz / 60Hz
ConductorsCopper Bars - Tin Plated
Insulation Material130℃ Heat-Resistant Polyester Sheet(Multi-Layered)
HousingGalvanized Sheet Steel
Finishing ColorRAL7032
Grounding50% Internal Earth Bar - Tin Plated

Main Features

1. Variable shapes of bus duct

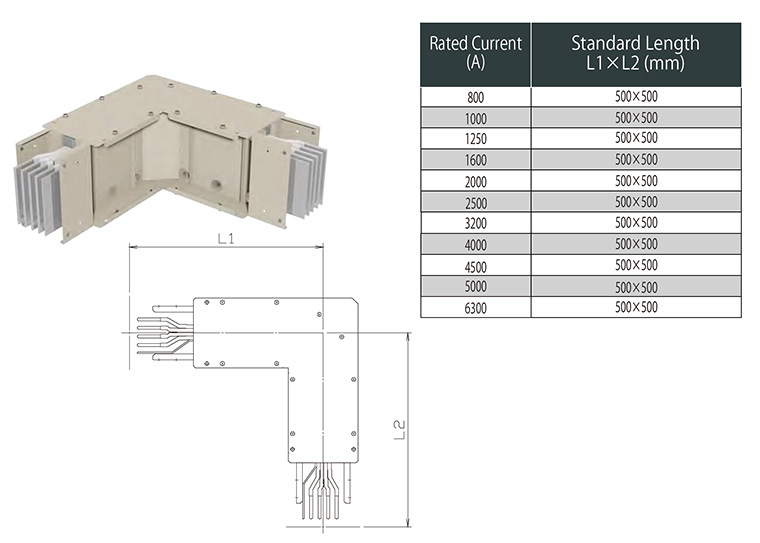

Horizontal Elbow (HL) Duct

Horizontal jointing used to connect bus ducts at a right angle

Horizontal jointing used to connect bus ducts at a right angle

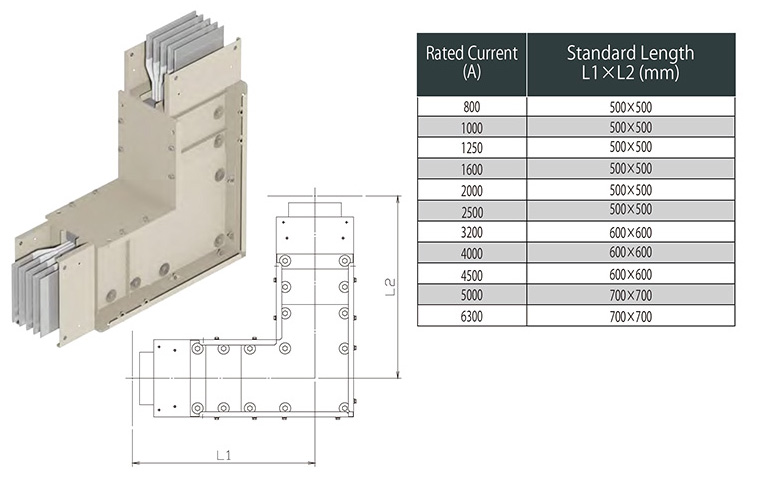

Vertical Elbow (VL) Duct

Vertical jointing used to connect bus ducts at a right angle

Vertical jointing used to connect bus ducts at a right angle

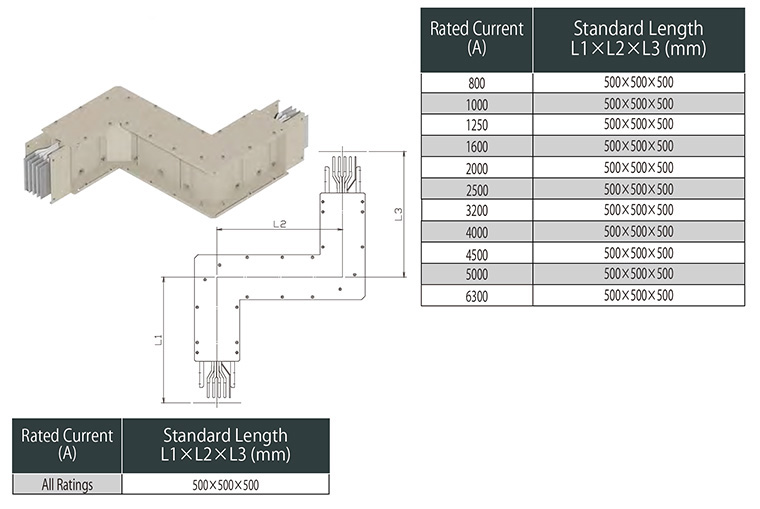

Horizontal Offset (HZ) Duct

Jointing unit used to adjust route position horizontally by the smallest amount possible

Jointing unit used to adjust route position horizontally by the smallest amount possible

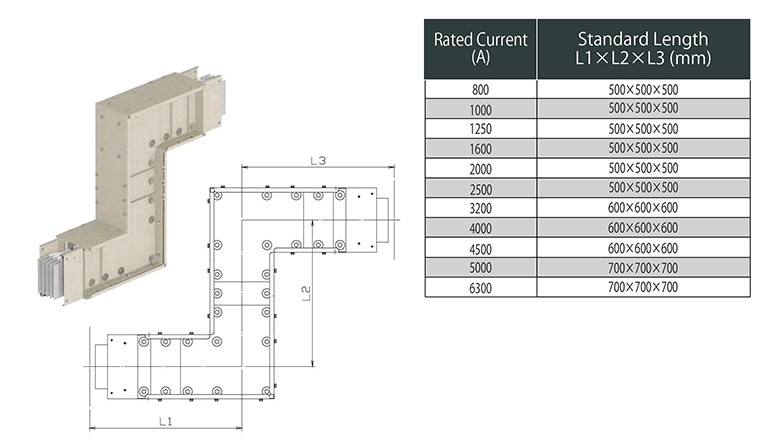

Vertical Offset (VZ) Duct

Jointing unit used to adjust route position vertically by the smallest amount possible

Jointing unit used to adjust route position vertically by the smallest amount possible

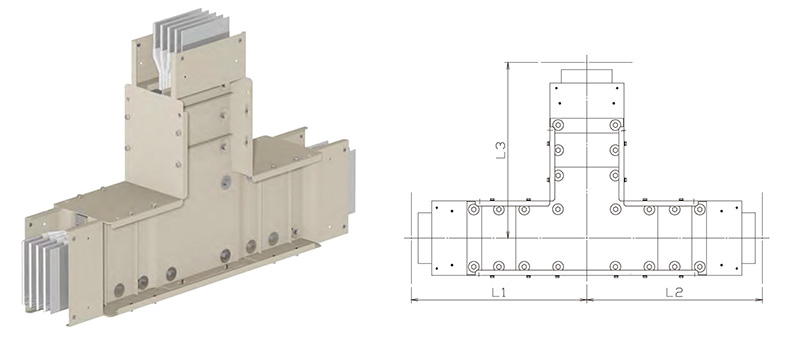

Vertical Tee (VT) Duct

-Vertical jointing unit used to branch bus duct in three directions

Vertical jointing unit used to branch bus duct in three directions

※Horizontal Tee (HT) Duct also available.
※Horizontal jointing unit is used to branch bus duct in three directions.

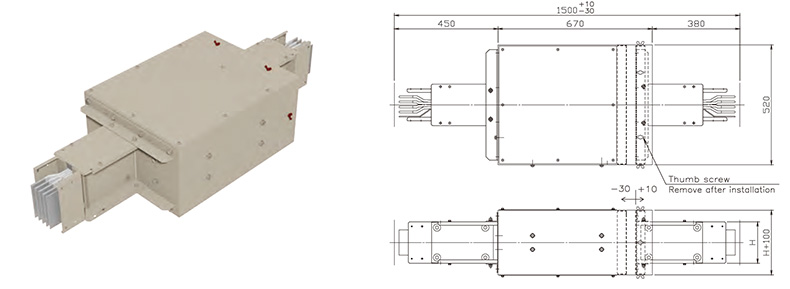

Expansion Duct

-Duct used to absorb thermal expansion and contraction of bus ducts
-Used in routes with long straight sections

Duct used to absorb thermal expansion and contraction of bus ducts Used in routes with long straight sections

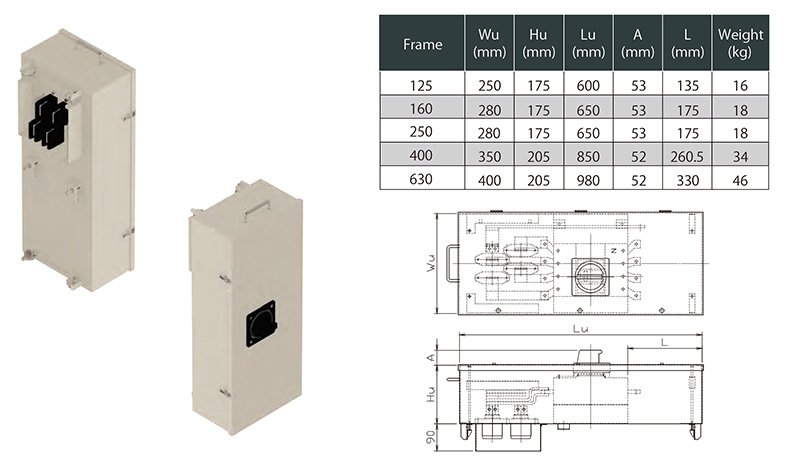

Plug-In Units

-Plug-in branch boxes used to branch load from bus ducts

Plug-in branch boxes used to branch load from bus ducts

2. Vertical Supports

Distance between Vertical Supports

The distance between vertical supports is permitted to be up to 6m according to electrical equipment regulations in Japan (check and conform with the regulations in your country), but we recommend providing floor support on each floor. In cases where floor height is 4m or higher, we recommend installing intermediary sway-bracing systems.

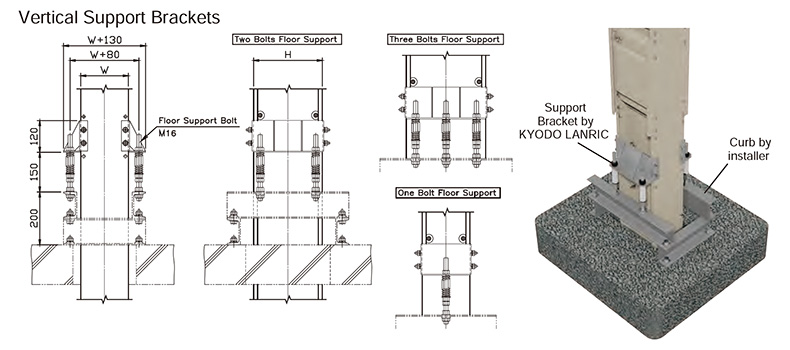

Vertical Support Brackets

※Number of support bolts will vary depending on the capacity of the bus duct.

3. Horizontal Supports

Distance between Horizontal Supports

The distance between horizontal supports must be no less than 2m.
Additionally, be sure to install earthquake-proofing supports at appropriate intervals according to your construction guidelines and planning for facility earthquake proofing.

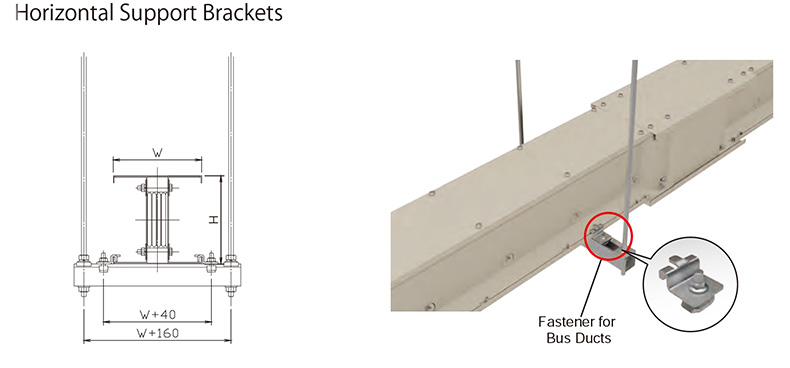

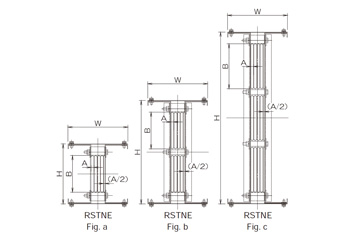

Horizontal Support Brackets

※For dimensions W and H, refer to chart on page 6 "Bus Duct Dimensions" in catalogue.
